Product name：Single Use Electrosurgical Knife
Product use：Used with endoscopes and electrosurgical units to cut tissue using high-frequency current within the digestive tract.

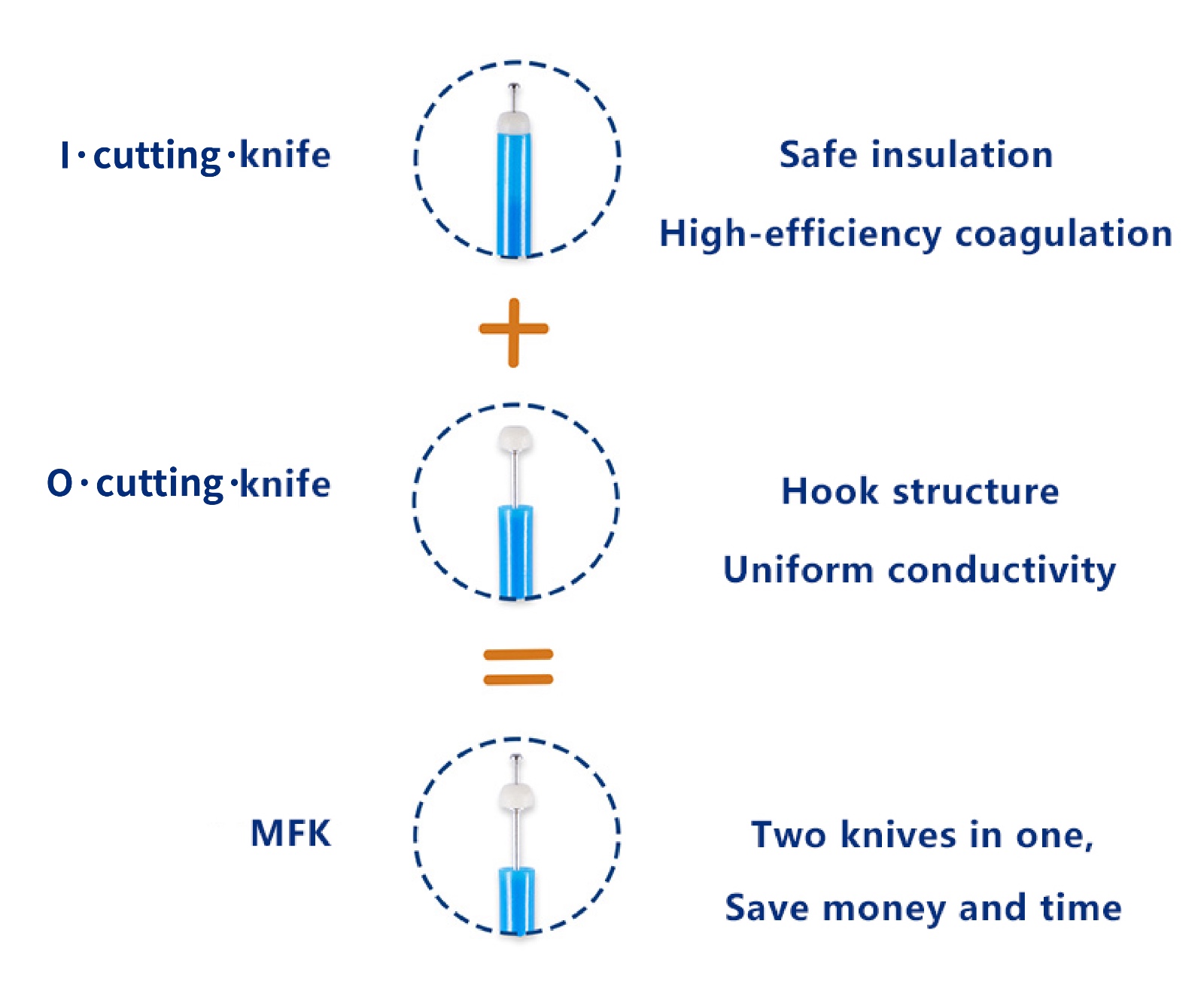

Head Type | Model/ Specification | Effective length L(mm) | O Cutting knife extension length A(mm) | I Cutting knife extension length B(mm) | Maximum insert outer diameter C(mm) | The smallest pass through the clamp Φ(mm) |
D | EK-401D | 1800±100 | 4±0.6 | 2±0.3 | ≤2.7 | φ3.2 |
EK-402D | 2300±100 | 4±0.6 | 2±0.3 | ≤2.7 | φ3.2 | |
EK-403D | 1800±100 | 4±0.6 | 3±0.5 | ≤2.7 | φ3.2 | |
EK-404D | 2300±100 | 4±0.6 | 3±0.5 | ≤2.7 | φ3.2 | |
EK-405D | 1800±100 | 4±0.6 | 4±0.5 | ≤2.7 | φ3.2 | |
EK-406D | 2300±100 | 4±0.6 | 4±0.5 | ≤2.7 | φ3.2 | |
EK-407D | 1800±100 | 4±0.6 | 1±0.2 | ≤2.7 | φ3.2 | |
EK-408D | 2300±100 | 4±0.6 | 1±0.2 | ≤2.7 | φ3.2 | |
EK-409D | 1800±100 | 4±0.6 | 1.5±0.2 | ≤2.7 | φ3.2 | |
EK-410D | 2300±100 | 4±0.6 | 1.5±0.2 | ≤2.7 | φ3.2 | |
EK-411D | 1600±100 | 4±0.6 | 2±0.3 | ≤2.7 | φ3.2 | |
EK-412D | 1600±100 | 4±0.6 | 3±0.5 | ≤2.7 | φ3.2 | |
EK-413D | 1600±100 | 4±0.6 | 4±0.5 | ≤2.7 | φ3.2 | |
EK-414D | 1600±100 | 4±0.6 | 1±0.2 | ≤2.7 | φ3.2 | |
EK-415D | 1600±100 | 4±0.6 | 1.5±0.2 | ≤2.7 | φ3.2 | |
EK-416D | 1800±100 | 4±0.6 | 2±0.3 | ≤2.4 | φ2.8 | |
EK-417D | 2300±100 | 4±0.6 | 2±0.3 | ≤2.4 | φ2.8 | |
EK-418D | 1800±100 | 4±0.6 | 3±0.5 | ≤2.4 | φ2.8 | |
EK-419D | 2300±100 | 4±0.6 | 3±0.5 | ≤2.4 | φ2.8 | |
EK-420D | 1800±100 | 4±0.6 | 4±0.5 | ≤2.4 | φ2.8 | |
EK-421D | 2300±100 | 4±0.6 | 4±0.5 | ≤2.4 | φ2.8 | |
EK-422D | 1800±100 | 4±0.6 | 1±0.2 | ≤2.4 | φ2.8 | |
EK-423D | 2300±100 | 4±0.6 | 1±0.2 | ≤2.4 | φ2.8 | |
EK-424D | 1800±100 | 4±0.6 | 1.5±0.2 | ≤2.4 | φ2.8 | |
EK-425D | 2300±100 | 4±0.6 | 1.5±0.2 | ≤2.4 | φ2.8 | |
EK-426D | 1600±100 | 4±0.6 | 2±0.3 | ≤2.4 | φ2.8 | |
EK-427D | 1600±100 | 4±0.6 | 3±0.5 | ≤2.4 | φ2.8 | |
EK-428D | 1600±100 | 4±0.6 | 4±0.5 | ≤2.4 | φ2.8 | |
EK-429D | 1600±100 | 4±0.6 | 1±0.2 | ≤2.4 | φ2.8 | |
EK-430D | 1600±100 | 4±0.6 | 1.5±0.2 | ≤2.4 | φ2.8 |
